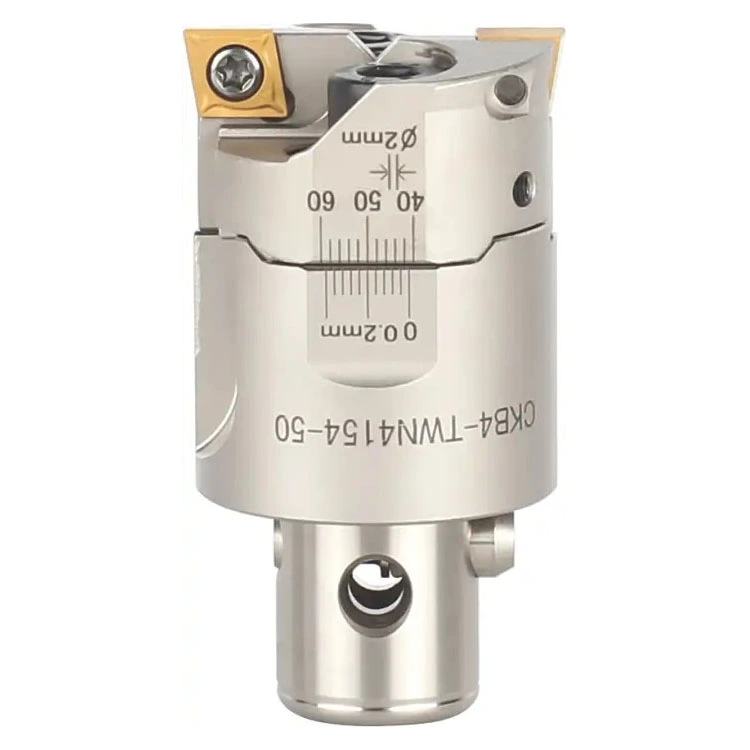

TWN ラフボーリングヘッド

• 直径範囲: 20mm – 150mm (0.787 インチ – 5.906 インチ)
• 長さの範囲: 35mm – 75mm (1.378 インチ – 2.953 インチ)
• 材質: H13 スチール

お問い合わせを送信

製品説明

• One boring head accommodates two cartridge sizes, reducing tooling inventory

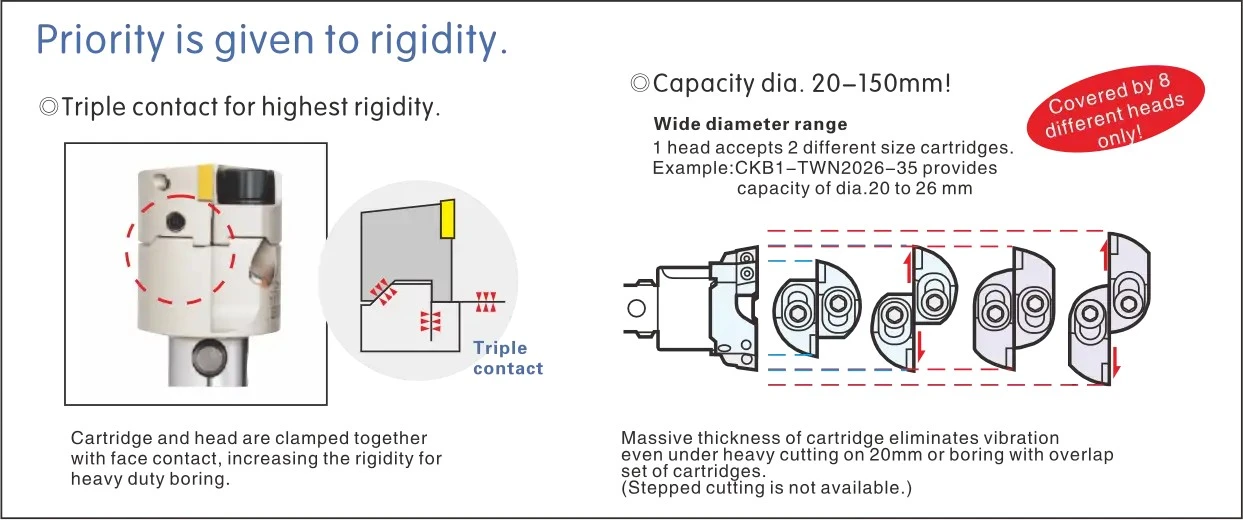

• Three-sided cartridge support provides high rigidity and vibration resistance
• Full face-contact cartridge clamping improves load distribution and clamping strength
• Cutter runout less than 0.02mm

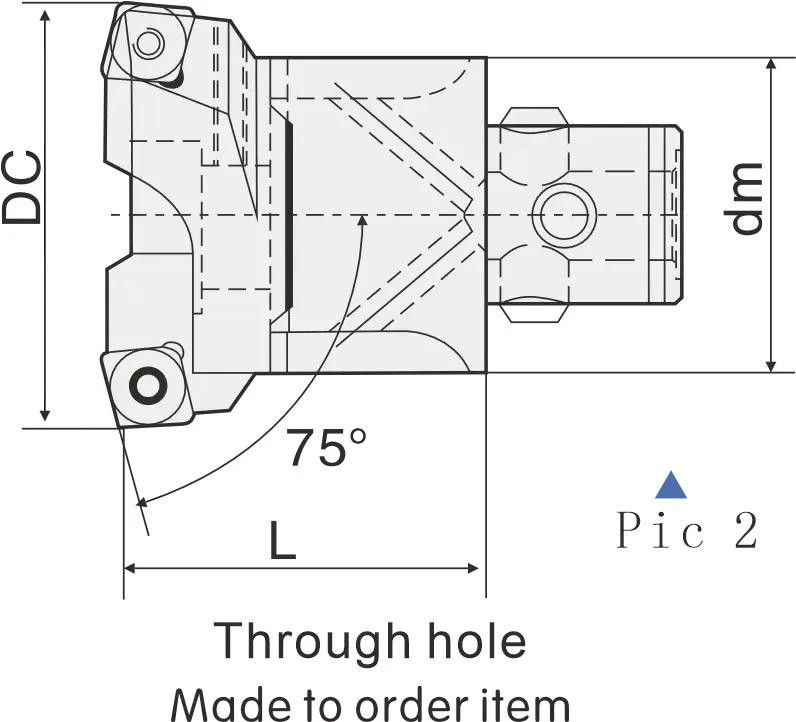

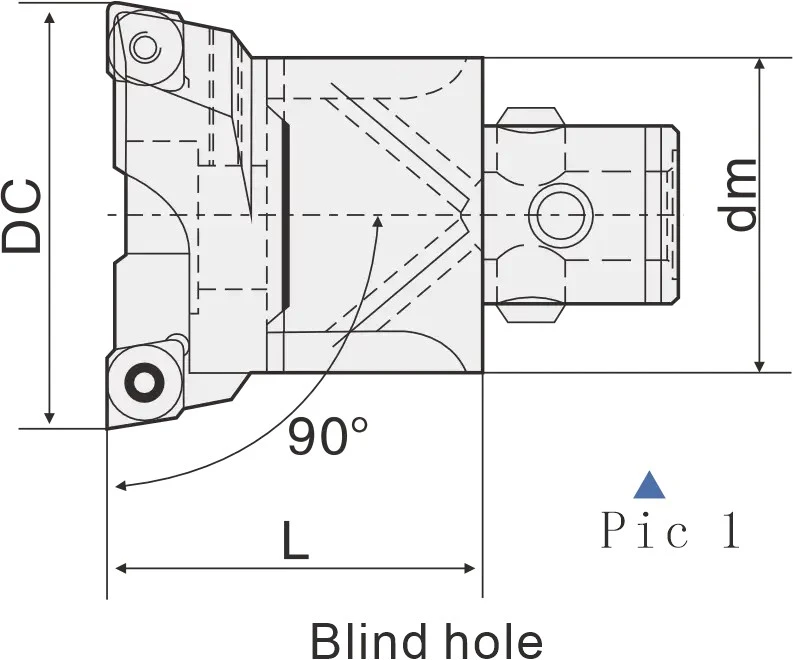

• Supports 90° blind-hole boring and 75° through-hole boring
• See page 96 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions
